miwayomi.

The story behind the name

Every project deserves a story, and miwayomi got a good one by accident. It started the way most self-hosted projects start: with a problem and a grudge. The original plan was modest — a self-hosted anime player. It was meant to sit on top of Suwayomi, but that project kept hanging and crashing, eating RAM and fighting at every turn. After too many nights of a frozen server, the call was made: “fine, I’ll build my own.”

So miwayomi was rebuilt from a different angle — a lean execution engine modeled on the ideas of Aniyomi (itself born from Tachiyomi): the same extension format and the same familiar source API, but reimagined as a pure JVM service that needs no Android at all.

The name came from a manga. A character named Miwa caught the eye — it just sounded right — and turned into miwayomi without knowing what it meant. When it was finally looked up, it turned out to mean roughly “beautiful reading” (mi + yomi). A happy accident, and the best kind: the name picked the project before the project picked the name.

What miwayomi is (and is not)

Design philosophy

• No Android required. The android-compat module makes extensions believe there is an Android runtime. In reality there is none — just a carefully crafted shim on a plain JVM.
• Lightweight by default. A single java process with a small heap and serial GC. Measured footprint: ~160–170 MB RSS at rest — comfortable on a 4 GB VPS.
• Generic, not special-cased. The extension pipeline is format-driven: if an APK declares a source, miwayomi can load it.
• Chunked, memory-neutral streaming. Media is streamed in 64 KB chunks; nothing is buffered whole into RAM.
• Persistence that survives restarts. Cookies, resolved Cloudflare hosts, favorites, and reading progress live in SQLite.
• Respect for the sites. The proxy forwards the exact headers each source needs. Cloudflare challenges are resolved automatically by an optional FlareSolverr sidecar.

Technical requirements

Build toolchain

• Kotlin 2.2.0 · JVM 21 · Gradle 8.10.2 (wrapper).
• Ktor 3.2.3 (Netty) — HTTP server.
• OkHttp 5.4.0 (with okhttp-zstd) — HTTP client.
• SQLite (sqlite-jdbc) — local persistence.
• ASM + dex2jar + apk-parser — the extension pipeline.
• GraalJS — QuickJs/Duktape stand-ins.
• Injekt — dependency injection.

How it works

Tachiyomi/Aniyomi extensions are APK files that announce their catalog classes in the manifest under meta-data (tachiyomi.extension.class / tachiyomi.animeextension.class). miwayomi turns those APKs into runnable sources on the JVM:

Extension (APK or repo-published JVM jar)
  → 1. apk-parser reads AndroidManifest.xml
  → 2. use the repo's JVM jar when published; otherwise dex2jar converts classes.dex to a .jar
  → 3. JarFixer auto-repairs bytecode on first load (invalid <init> owners from DEX→JVM)
  → 4. ChildFirstURLClassLoader loads the classes
  → 5. SourceFactory / Source instantiated & registered
  → 6. REST API + WebUI expose every catalog

Because the mechanism is generic, it works for any extension in that format — the format is the contract, not the vendor.

Architecture

Codebase map (file by file)

server/ — the application

core-common/ — the network heart

source-api/ — the extension contract

android-compat/ — the Android shim

The Web UI

REST API

Base URL: http://<host>:4567/api/v1 — JSON in, JSON out.

# Health
curl http://localhost:4567/api/v1/health
# → {"status":"ok","service":"miwayomi","mangaSources":7,"animeSources":13}

# Popular manga from a source, page 1
curl "http://localhost:4567/api/v1/manga/8448310129093543312/popular?page=1"

# Chapters of a manga (url = the source's own URL, percent-encoded)
curl "http://localhost:4567/api/v1/manga/8448310129093543312/chapters?url=%2Fmanga%2F1"

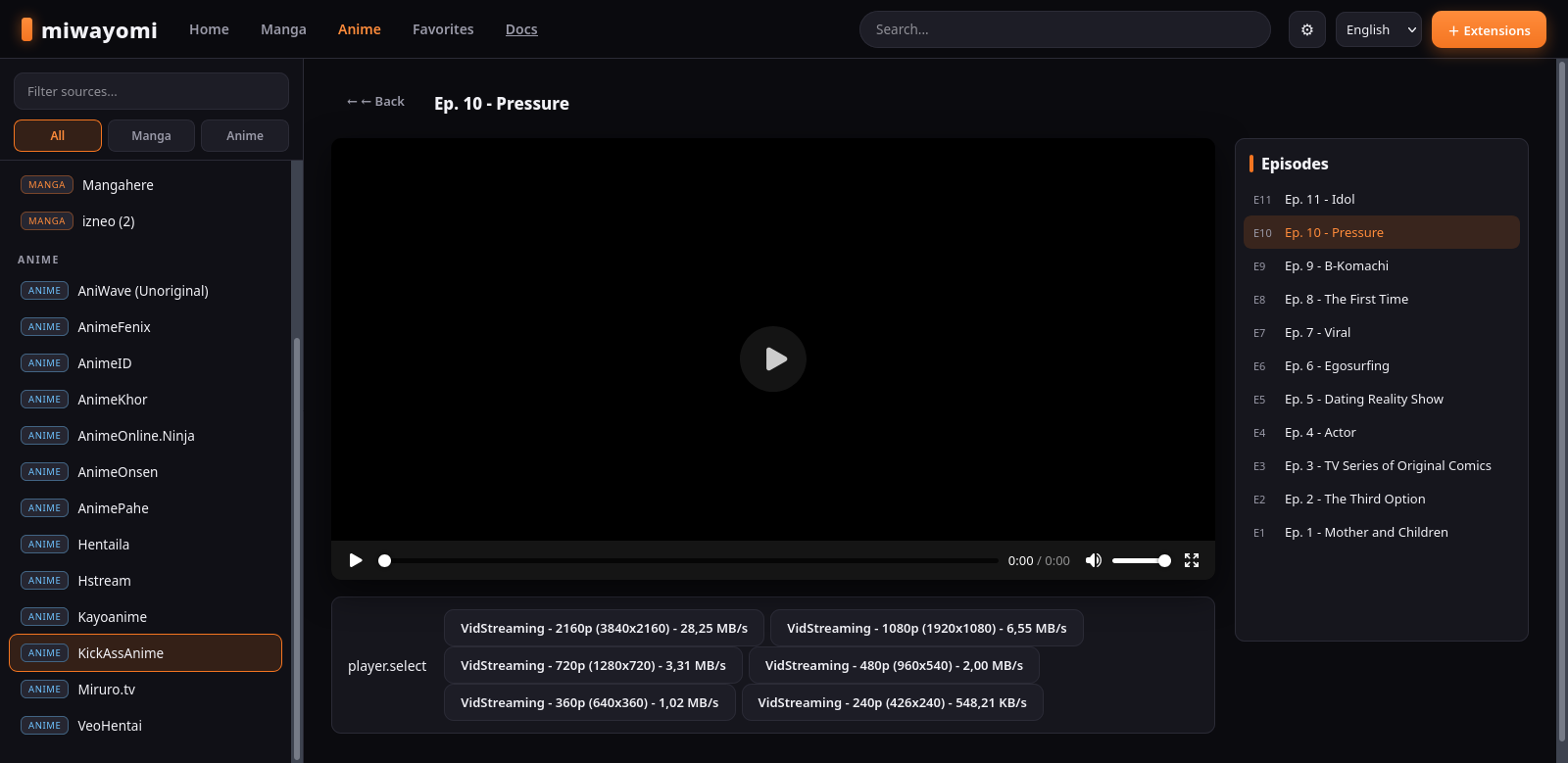

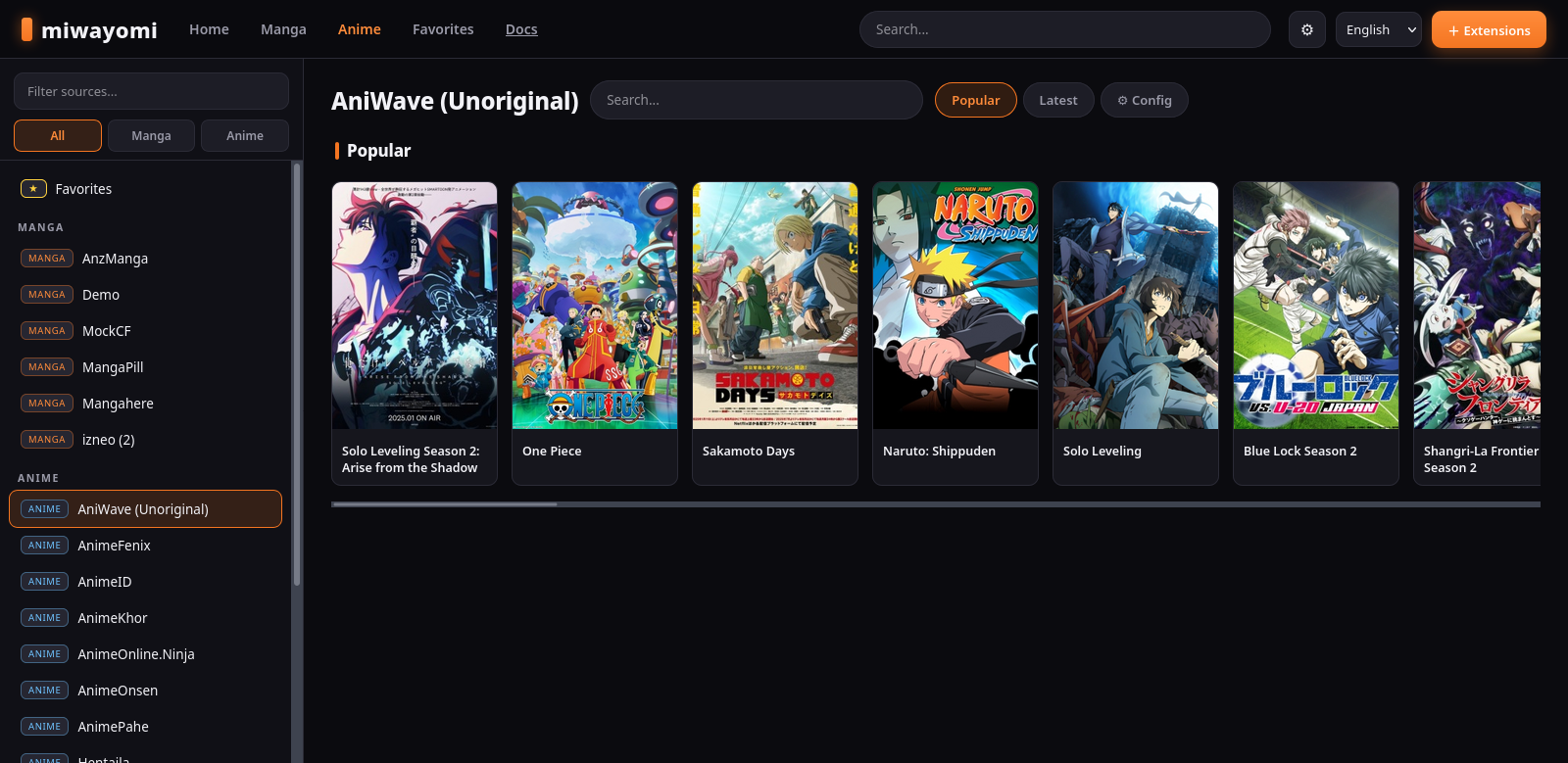

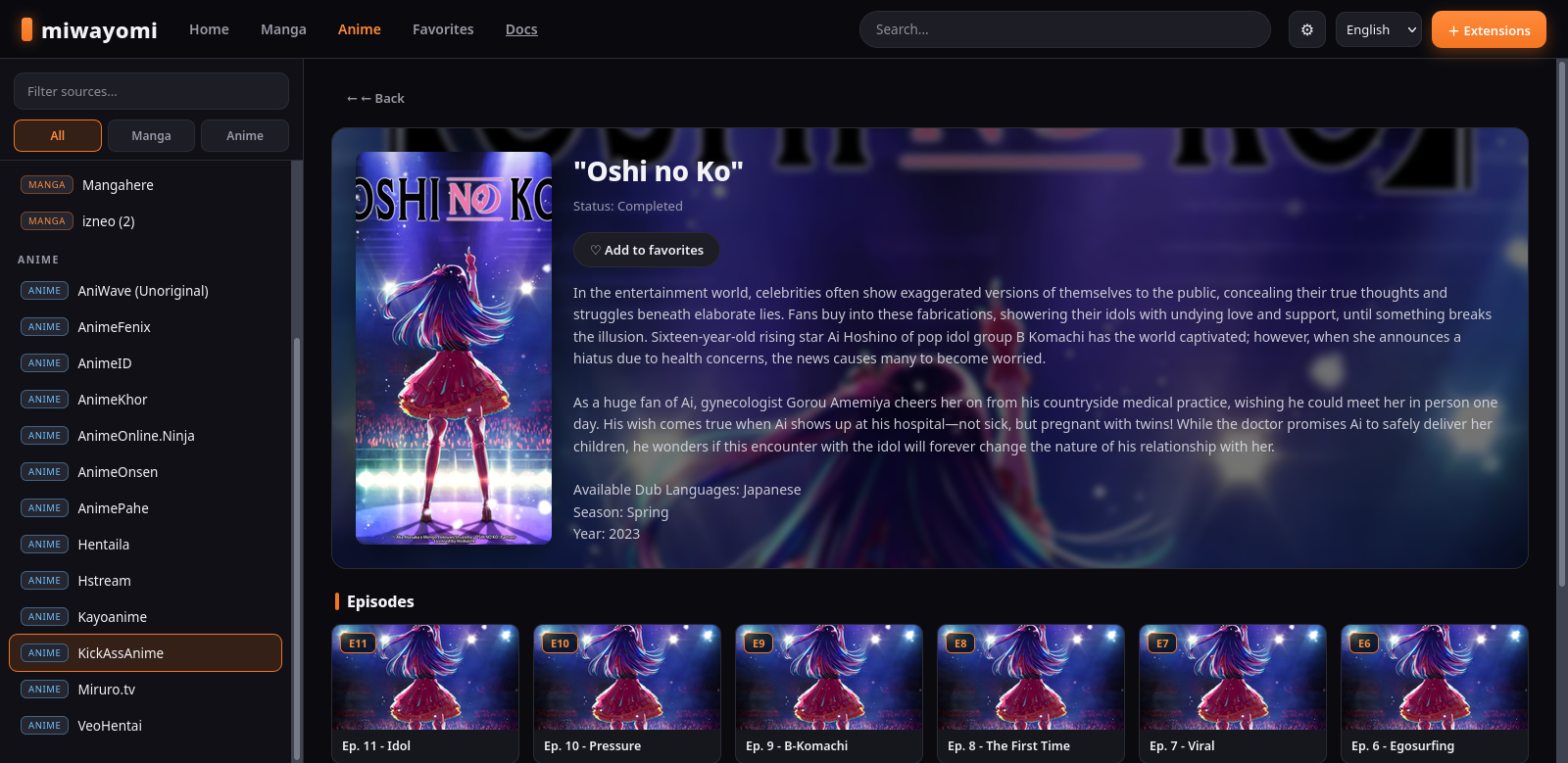

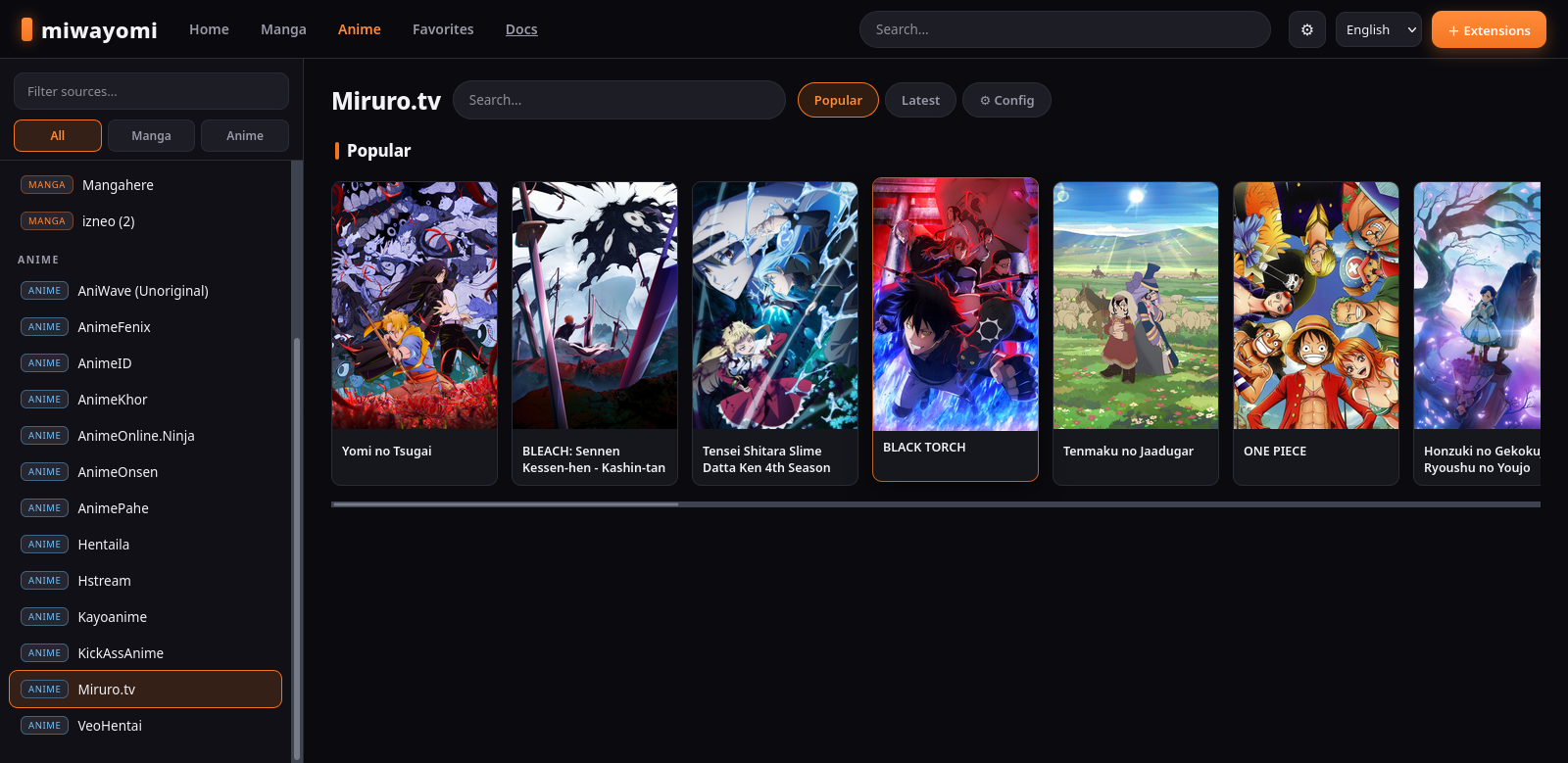

The Web UI

The web UI is a single-page app with a Crunchyroll-style structure: top navigation, a filterable source sidebar, a home with hero and rows, a detail page with hero and numbered episode/chapter cards, a continuous manga reader, and a video player with an episode list.

Highlights

Customizing the UI

Everything about the interface lives in server/src/main/resources/webui/. You never touch the backend to change the look — edit these files and rebuild:

Change the theme (colors)

Open style.css and edit the variables at the top. For example, to go from the orange accent to a violet one:

/* style.css :root */
:root {
  --accent: #7c3aed;      /* was #f47521 */
  --accent-hi: #a78bfa;   /* was #ff8c3b */
}

The background, panels, borders, text, and buttons all reference variables, so one change propagates everywhere.

Add a language

# 1. Copy the English file
cp lang/en.json lang/fr.json
# 2. Translate the values (keep the keys), then register it:
#    in index.html: <option value="fr">Français</option>
#    in app.js:     AVAILABLE_LANGS = ["en","es","fr"]

Add a new view or section

1. Write a render function in app.js that fills #content (look at renderHome or renderDetail as templates).
2. Add a button/nav item in index.html that calls it.
3. Style the new elements in style.css reusing the variables.
4. Any user-visible text goes through t("key") and is added to lang/en.json and lang/es.json.

Apply your changes

cd /home/asking/Escritorio/miwayomi
./gradlew :server:installDist   # repackages the WebUI into the distribution
./start.sh                       # restart

Building and running

Requirements

• JDK 21 (Temurin recommended). Gradle downloads itself via the wrapper.
• FlareSolverr (optional) to solve Cloudflare challenges automatically.

Quick start (desktop / JAR)

java -jar miwayomi-all.jar (from the Releases page) just works: it picks a free port, starts and opens your default browser. The launcher ./miwayomi / miwayomi.bat opens a dedicated app window (Chrome/Edge --app) and stops the server when you close it.

java -jar miwayomi-all.jar      # any OS — auto port + opens the browser
./miwayomi                      # desktop launcher (app window)

Force a port with --port 4567; --no-open disables opening a browser.

Auto-update

On startup the server checks GitHub for a newer release: if one exists it downloads the new JAR and the WebUI shows a banner ("New version available — close and relaunch to apply"). The next launch applies it. Status: GET /api/v1/update.

Windows installer

packaging/build-installer.sh (needs NSIS: sudo apt install nsis / brew install nsis / yay -S nsis) produces packaging/dist/miwayomi-setup-<version>.exe. Pass JRE_ZIP=temurin-21-windows-x64.zip to bundle a JRE for a standalone installer. A GitHub Actions workflow also builds it automatically on each release.

Lightweight build (recommended for a VPS)

./gradlew :server:installDist
./gradlew --stop                # frees the Gradle daemons (RAM)
./start.sh                      # uses the distribution if present (headless)

The JVM runs with -Xmx512m -Xms64m -XX:MaxMetaspaceSize=256m -XX:+UseSerialGC. Override RAM with MIWAYOMI_MEM="-Xmx768m" ./start.sh.

Docker (recommended for servers / VPS)

docker compose up -d      # builds miwayomi + FlareSolverr (from source, in a venv)

WebUI/API on http://localhost:4567, FlareSolverr on http://localhost:8191; persistent data (SQLite, extensions, cookies) lives in the named volume miwayomi-data. The Dockerfile builds the fat JAR with a JDK stage and runs it with a slim JRE (no JDK, no browser). FlareSolverr is built from source inside a Python virtualenv (docker/flaresolverr.Dockerfile) and bundles its own headless Chromium engine — required by FlareSolverr, not part of miwayomi. Tune JVM memory with the JAVA_OPTS env var; change the solver URL with FLARESOLVERR_URL (empty disables it).

Prebuilt images are published to GHCR on every push to main and on every release — multi-arch (linux/amd64, linux/arm64), no local build needed: ghcr.io/miwayomi/miwayomi and ghcr.io/miwayomi/flaresolverr (latest, plus version tags like 0.3.0). Run the app image alone: docker run -d -p 4567:4567 -v miwayomi-data:/data -e FLARESOLVERR_URL=http://127.0.0.1:8191 ghcr.io/miwayomi/miwayomi:latest.

Dev mode

./gradlew :server:run --args="--data ./data --port 4567 --flaresolverr http://127.0.0.1:8191"

CLI options

Verify

curl http://localhost:4567/api/v1/health

Then open http://localhost:4567.

Creating your own extension

Option A — a built-in source (fastest)

Every source is an object implementing the MangaSource contract. Write a Kotlin class in server/src/main/kotlin/miwayomi/builtin/ — exactly like DemoSource.kt — rebuild, and it appears in /sources.

Option B — a real extension APK

Three things: a manifest, a source class, and a build that produces an APK.

1. The manifest

<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    <application>
        <meta-data
            android:name="tachiyomi.extension.class"
            android:value="com.example.demolib.DemoLibFactory" />
    </application>
</manifest>

The class must be a SourceFactory (createSources(): List<MangaSource>) or a direct MangaSource subclass.

2. The source (original example)

package com.example.demolib

import eu.kanade.tachiyomi.source.online.HttpSource
import eu.kanade.tachiyomi.source.model.*

class DemoLib : HttpSource() {
    override val name = "DemoLib"
    override val lang = "en"
    override val baseUrl = "https://demo-manga.example"
    override val supportsLatest = true

    override fun getFilterList() = FilterList()

    override fun popularMangaRequest(page: Int) = GET("$baseUrl/popular?page=$page", headers)
    override fun popularMangaParse(response: Response) =
        response.use { parseMangaPage(it) }
    // ... search, latest, details, chapters, pages ...
}

class DemoLibFactory : SourceFactory {
    override fun createSources() = listOf(DemoLib())
}

3. Build & install

• Compile against the source-api module in this repository.
• Produce an APK, then drop it into <data>/extensions/ and restart — or use POST /api/v1/extensions/install. Installed extensions are registered in the database and restored on the next start.
• Confirm with curl http://localhost:4567/api/v1/sources.

Streaming internals

• HLS (.m3u8) — /hls rewrites the manifest (including URI= inside EXT-X-KEY/EXT-X-MAP) and proxies segments with Range support.
• DASH (.mpd) — /dash rewrites media=/initialization=; /dashseg resolves base + relative path, keeping $Number%05d$ templates raw.
• Direct files — /proxy streams with Range support.

All proxies stream in 64 KB chunks (no full-file buffering). MimeTypes.kt infers the correct content type even when the CDN sends application/octet-stream. Images are cached to disk (data/cache/images/) so thumbnails, covers, and manga pages load instantly on repeat visits; video is deliberately not cached so Range/206 stays correct.

Cloudflare challenges

Some sources sit behind Cloudflare’s anti-bot. miwayomi unlocks them via FlareSolverr — it no longer ships or launches its own browser. CloudflareInterceptor detects a challenge and asks the configured FlareSolverr to solve it automatically. On success it captures the cookies (including HttpOnly cf_clearance) and — because Cloudflare binds those cookies to a User-Agent — remembers the solver’s UA for that host. Subsequent requests fly through (~1 s). If FlareSolverr isn’t configured or fails, the API returns a clear error telling you to configure it.

Local persistence

Everything is stored in data/cache/miwayomi.db (SQLite, WAL mode):

Source preferences live in data/prefs/source_<id>.properties, and the proxied-image cache in data/cache/images/.

Troubleshooting

Roadmap

• Docker — done: Dockerfile + docker-compose.yml (miwayomi on a slim JRE + a FlareSolverr sidecar built from source in a venv); docker compose up -d runs it, and GHCR images are published by CI on every push/release.
• More web UI views — filters, in-place sorting, page caching.
• Per-source JS engines — isolate QuickJs/Duktape per extension.
• Torrent streaming — the stub exists in core-common.
• Your own sources — follow the guide above; a source you wrote is the best contribution to your own server.

Good first places to read the code: builtin/DemoSource.kt, extension/JarFixer.kt, and api/StreamingRoutes.kt.

Glossary

Legal notice & disclaimer

miwayomi is an execution engine, not a content service.

• No content, no distribution. miwayomi does not create, host, store, index, link to, distribute, or recommend any content, media, source, or extension repository. It ships no content itself; the built-in demo source is fully offline.
• Third-party extensions. Extensions in the Tachiyomi/Aniyomi format are third-party software written and distributed by their own authors. miwayomi merely loads and runs them at the user's request. Their behavior and the sites they interact with are the sole responsibility of their authors and of the user who installs them.
• User responsibility. You are solely responsible for the extensions you install and the content you access; for complying with the laws of your jurisdiction and the terms of service of any site you interact with; and for not using this software to infringe copyright, bypass access controls you are not authorized to bypass, or redistribute content you do not have rights to.
• No affiliation. miwayomi is not affiliated with, endorsed by, sponsored by, or a fork of Tachiyomi, Aniyomi, or any related project. Its design is inspired by the Tachiyomi/Aniyomi open-source ecosystem, and portions of their source APIs are reused under Apache-2.0 — see NOTICE-ANIYOMI.md for attribution.
• Trademarks and content. All product names, logos, brands, cover art, titles, and other marks that appear in this project or its screenshots belong to their respective owners and are used only for identification or illustration purposes.
• No warranty. This software is provided “as is”, without warranty of any kind, express or implied. The author(s) are not liable for any damages arising from its use.
• If you use this software, you do so at your own risk and under your own responsibility.
